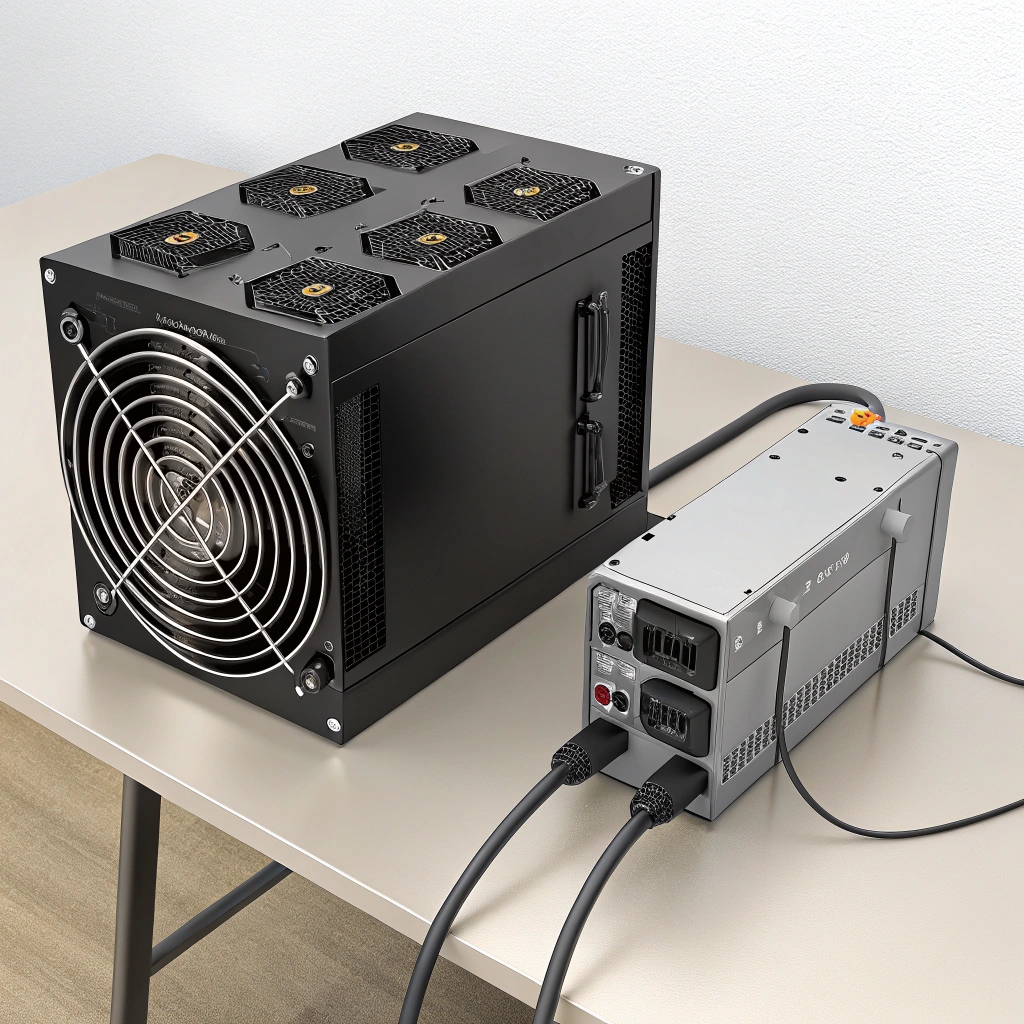

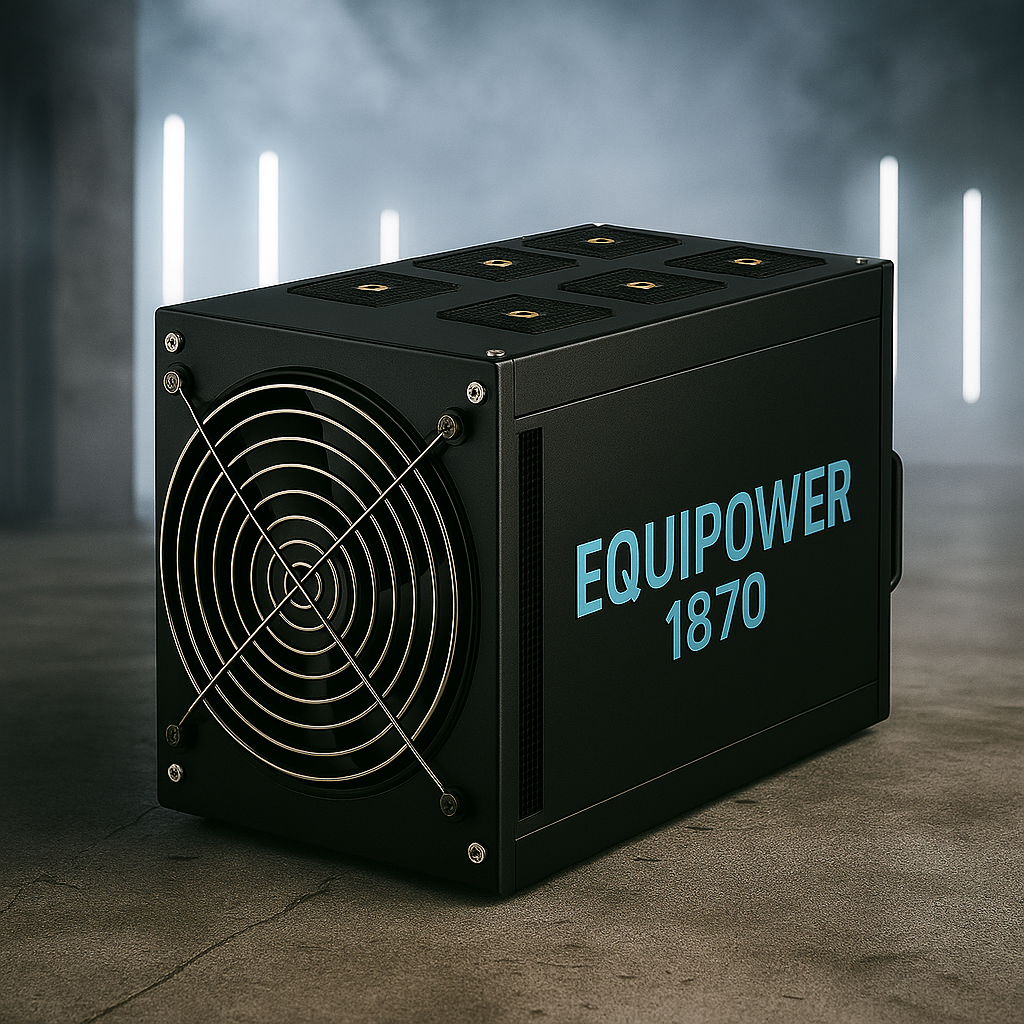

GuanYuMiner EquiPower 1870 User Manual

---

1. Introduction

Thank you for choosing the GuanYuMiner EquiPower 1870, the most powerful and efficient ASIC miner for the Equihash algorithm. Designed for serious miners, the EquiPower 1870 offers outstanding performance with a hashrate of 1870.00 KH/s at 3660W power consumption. This manual will guide you through setup, operation, and maintenance to ensure maximum efficiency and performance from your miner.

---

2. Safety Precautions

Before operating your EquiPower 1870, please ensure you understand and follow these safety guidelines:

• Power: Ensure the power supply matches the required input voltage (3-phase power supply with 414V recommended).

• Ventilation: The unit requires adequate ventilation for cooling. Place it in a well-ventilated area.

• Handling: The miner weighs 15.7 kg; use proper lifting techniques or equipment when moving.

• Water and Moisture: Avoid exposing the miner to water or high humidity. Ensure the operating environment has a humidity range between 10% – 90%.

• Temperature: Ensure the ambient temperature stays between 5°C – 40°C to avoid overheating.

---

3. Package Contents

Upon unboxing your EquiPower 1870, verify the following items:

• EquiPower 1870 ASIC Miner (1 unit)

• Power Cable (1 unit)

• Ethernet Cable (1 unit)

• User Manual (1 unit)

If any items are missing or damaged, please contact the manufacturer for support.

---

4. Product Specifications

• Algorithm: Equihash

• Hashrate: 1870.00 KH/s

• Power Consumption: 3660W

• Minable Coins: Horizen (ZEN), Zcash (ZEC), Pirate (ARRR), Hush (HUSH), Komodo (KMD)

• Size: 320 mm x 264 mm x 345 mm

• Weight: 15.7 kg

• Noise Level: 75 dB

• Cooling: 6 Turbo Fans + 1 Main Fan

• Interface: Ethernet

• Operating Temperature: 5°C – 40°C

• Operating Humidity: 10% – 90%

---

5. Setup Instructions

Step 1: Place the Miner

• Place the EquiPower 1870 in a dry, cool location with adequate ventilation. Ensure there is at least 6 inches of clearance around the device for airflow.

• Avoid direct sunlight and any source of heat.

Step 2: Connect the Power Supply

• Connect the provided power cable to the EquiPower 1870 and plug it into a 3-phase power outlet.

• Ensure the power supply meets the required voltage specifications (414V recommended) to avoid electrical issues.

Step 3: Connect the Ethernet Cable

• Plug the provided Ethernet cable into the Ethernet port of the EquiPower 1870.

• Connect the other end to your router or network switch for internet access.

Step 4: Power On the Miner

• Press the power button to turn on the miner.

• The EquiPower 1870 will initiate its startup sequence, and the fans will begin operating. Wait for the miner to stabilize.

---

6. Configuration and Operation

Step 1: Access the Miner’s Interface

• Open a web browser on a computer connected to the same network as the miner.

• Enter the miner’s default IP address in the browser’s address bar (usually 192.168.1.1 or as shown in the manual).

• Log in with the default credentials (User: admin, Password: admin).

Step 2: Configure Mining Pool

• Once logged in, navigate to the Pool Configuration section.

• Enter your desired mining pool information, including the pool’s URL, worker name, and password.

• Click Save to apply the settings.

Step 3: Monitor and Adjust

• Use the Miner Dashboard to monitor hash rate, temperature, and power consumption in real-time.

• If necessary, adjust fan speeds or temperature settings for optimal performance.

• You can also monitor the miner’s status, uptime, and mining efficiency via the dashboard.

---

7. Maintenance and Troubleshooting

Routine Maintenance

• Cooling System: Ensure the fans are clean and free of dust. Clean the turbo fans and main fan every 3 months to ensure optimal airflow.

• Firmware Updates: Regularly check for firmware updates on the GuanYuMiner website. Follow the update instructions provided to keep the miner up-to-date.

• Environmental Check: Periodically verify the operating environment (temperature and humidity) to ensure they fall within the recommended ranges.

Troubleshooting

• Miner Not Powering On: Ensure the power supply is correctly connected and that there is power to the outlet. Check the breaker if necessary.

• Low Hashrate: Verify your internet connection and ensure your mining pool information is correctly entered. If temperatures are too high, adjust the cooling setup.

• Overheating: If the temperature exceeds 40°C, reduce the miner’s workload or improve the ventilation around the device.

---

8. Warranty and Support

Your GuanYuMiner EquiPower 1870 comes with a 1-year warranty covering manufacturing defects. For support or service, please contact our customer service team at [email protected].

---

9. Conclusion

Thank you for choosing the GuanYuMiner EquiPower 1870. We are committed to providing the best mining equipment to help you succeed. With its efficient performance and advanced cooling system, your mining operations will reach new heights.

Happy mining! 🚀
