1. Introduction

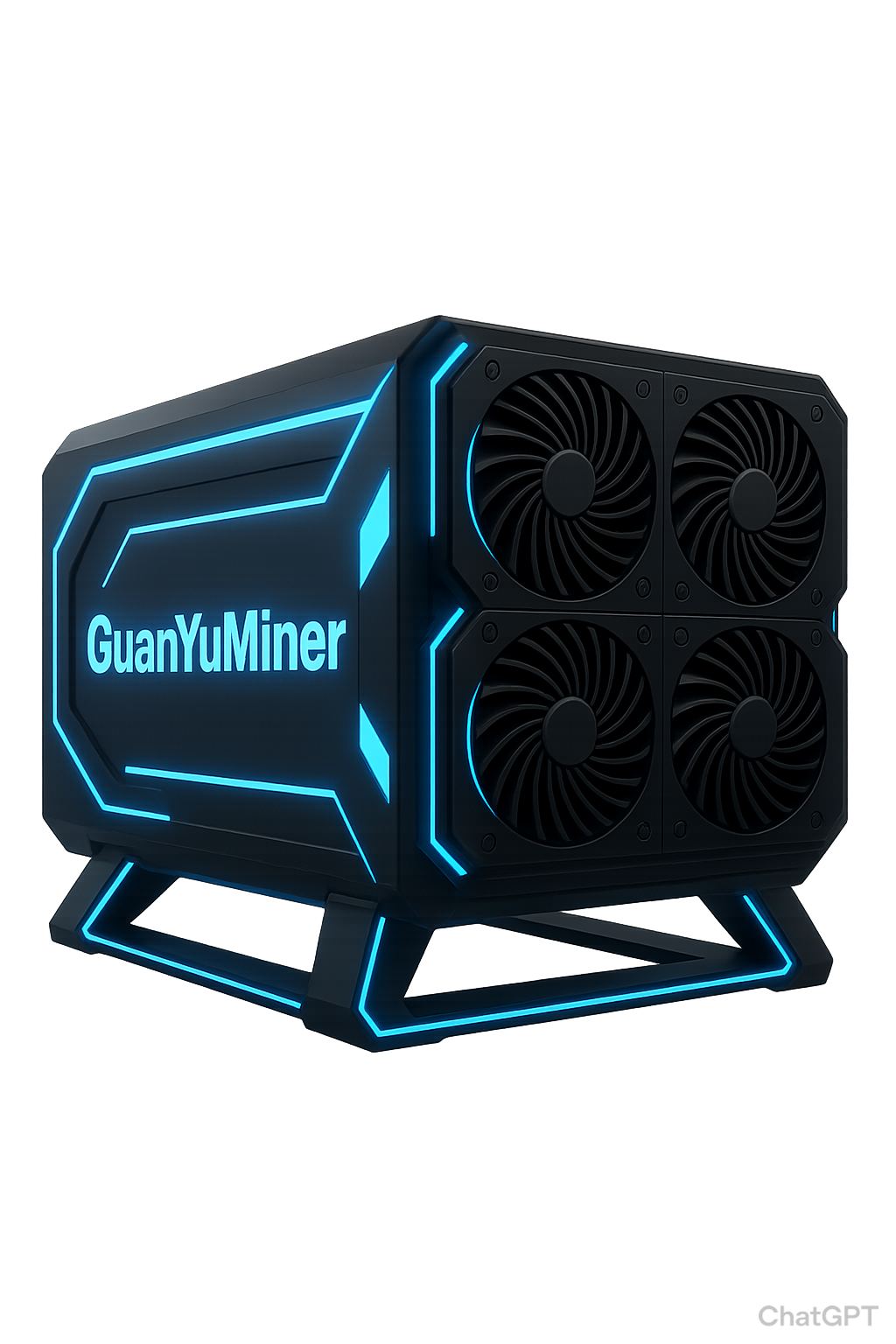

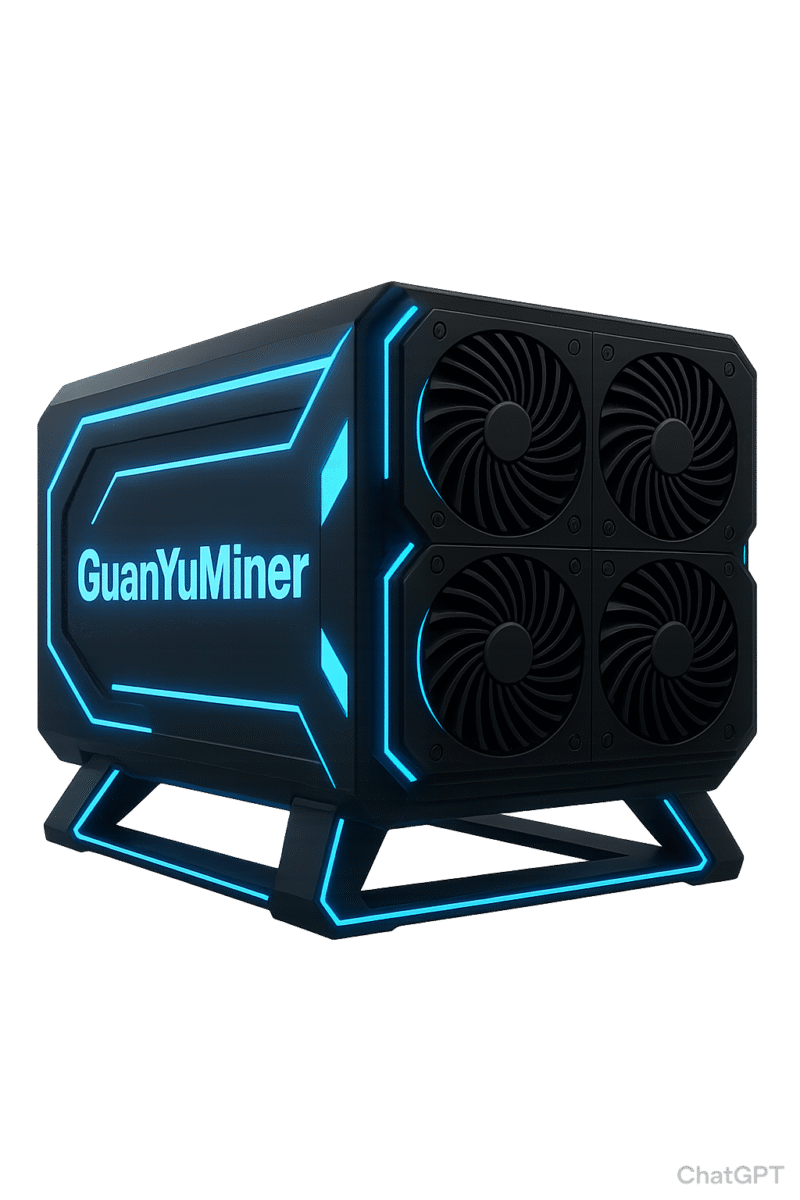

Thank you for choosing the GuanYuMiner LuminaX, an advanced and efficient ASIC miner specifically designed for the SHA3x algorithm, optimized for mining Tari (XTM). With a powerful hashrate of 2.5 Th/s and energy consumption of just 1150W, the LuminaX is built to deliver reliable, stable, and profitable mining performance.

This manual provides detailed instructions on setup, safe operation, configuration, and maintenance to ensure maximum efficiency and long-term reliability. Please read it carefully before using your miner.

2. Safety Precautions

Before operating your GuanYuMiner LuminaX, please review and follow these safety guidelines:

• Power Supply: Ensure the input power source matches the miner’s requirements. Use a high-quality PSU to prevent damage.

• Ventilation: Place the miner in a well-ventilated environment with at least 15 cm (6 inches) of clearance around the unit for proper airflow.

• Handling: The LuminaX weighs 4.7 kg. Handle with care and use proper lifting techniques.

• Water & Humidity: Do not expose the miner to water, rain, or high humidity. Keep humidity within 10% – 90% non-condensing.

• Temperature: Operate only within the recommended ambient range of 5°C – 40°C. Exceeding this may cause overheating or damage.

• Fire Safety: Do not cover the miner’s ventilation outlets or block fans. Keep away from flammable objects.

3. Package Contents

When unboxing your LuminaX, verify that the following items are included:

• GuanYuMiner LuminaX ASIC Miner (1 unit)

• Power Cable (1 unit)

• Ethernet Cable (1 unit)

• User Manual (1 unit)

⚠️ If any item is missing or damaged, please contact GuanYuMiner Support immediately before operating the unit.

4. Product Specifications

5. Setup Instructions

Step 1: Placement

• Place the LuminaX on a stable, non-flammable surface in a dry and cool environment.

• Ensure at least 15 cm clearance around all sides for airflow.

• Avoid direct sunlight, heaters, or damp areas.

Step 2: Connect the Power Supply

• Connect the provided power cable to the LuminaX and then to a suitable power outlet that meets the unit’s requirements.

• Use a surge protector or dedicated circuit where possible.

Step 3: Connect the Network

• Plug the Ethernet cable into the LuminaX’s Ethernet port.

• Connect the other end to your router, switch, or mining network.

Step 4: Power On

• Press the power button.

• The fans will start spinning and the miner will enter its startup sequence.

• Wait 1–2 minutes for the system to stabilize.

6. Configuration and Operation

Step 1: Access the Miner’s Interface

• Connect a computer to the same network as the miner.

• Open a web browser and enter the miner’s IP address (default: 192.168.1.1 or check your router’s DHCP client list).

• Log in using default credentials:

  • Username: admin

  • Password: admin

Step 2: Configure the Mining Pool

• Navigate to the Pool Settings tab.

• Enter your mining pool URL, worker name, and password (as provided by your pool).

• Click Save & Apply to begin mining.

Step 3: Monitor Performance

• Use the Dashboard to track:

  • Hashrate (2.5 Th/s nominal)

  • Power usage (1150W)

  • Temperature & fan speed

  • Mining uptime and pool connection status

• Adjust fan profiles if required for your environment.

7. Maintenance and Troubleshooting

Routine Maintenance

• Dust Cleaning: Clean fan grills and air inlets every 2–3 months with compressed air.

• Firmware Updates: Regularly check www.guanYuminer.com

9. Conclusion

The GuanYuMiner LuminaX combines high efficiency, strong hashrate performance, and durable construction, making it the perfect solution for miners focused on Tari (XTM) with SHA3x algorithm.

By following this manual, you will maximize the efficiency, lifespan, and profitability of your mining hardware.

⚡ Mine smarter. Mine stronger. Mine with GuanYuMiner LuminaX.
